ABP.IO 新手教學 No.09 開發教學 第 8 部分:作者:應用服務層 {id="ABP-IO-Tutorial-No-09-Part-8-Authors-Application-Service"}

主要說明一般常用的API該如何一步一步地完成

包含服務介面(這次使用一般應用介面而非CRUD專用介面)

還有介面實作、權限屬性、AutoMapper、種子資料、測試

Web 應用程序開發教程 - 第 8 部分:作者:應用程序層

關於本教程

在本系列教程中,您將構建一個名為Acme.BookStore. 此應用程序用於管理書籍及其作者的列表。它是使用以下技術開發的:

  • Entity Framework Core作為 ORM 提供者。

  • Angular作為 UI 框架。

本教程分為以下幾個部分;

下載源代碼

本教程根據您的UI數據庫首選項有多個版本。我們準備了幾個要下載的源代碼組合:

介紹

這部分說明為之前創建的Author實體創建一個應用層。

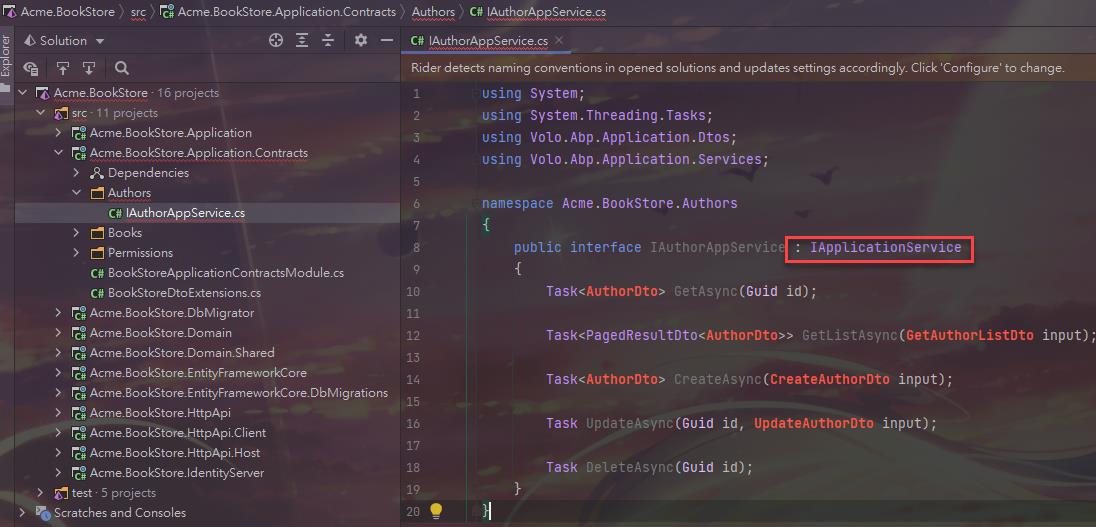

IAuthorAppService

我們將首先創建應用服務接口和相關的DTO 。在項目IAuthorAppServiceAuthors命名空間(文件夾)中創建一個名為 的新接口Acme.BookStore.Application.Contracts

using System; using System.Threading.Tasks; using Volo.Abp.Application.Dtos; using Volo.Abp.Application.Services; namespace Acme.BookStore.Authors { public interface IAuthorAppService : IApplicationService { Task<AuthorDto> GetAsync(Guid id); Task<PagedResultDto<AuthorDto>> GetListAsync(GetAuthorListDto input); Task<AuthorDto> CreateAsync(CreateAuthorDto input); Task UpdateAsync(Guid id, UpdateAuthorDto input); Task DeleteAsync(Guid id); } }
  • IApplicationService 是所有應用服務都繼承的約定俗成的接口,所以ABP框架可以識別服務。

  • 定義了對Author實體執行 CRUD 操作的標準方法。

  • PagedResultDto是 ABP 框架中預定義的 DTO 類。它有一個Items集合和一個TotalCount返回分頁結果的屬性。

  • 首選AuthorDtoCreateAsync方法返回(對於新創建的作者),而此應用程序不使用它 - 只是為了顯示不同的用法。

1627030796

此接口使用下面定義的 DTO(為您的項目創建它們)。

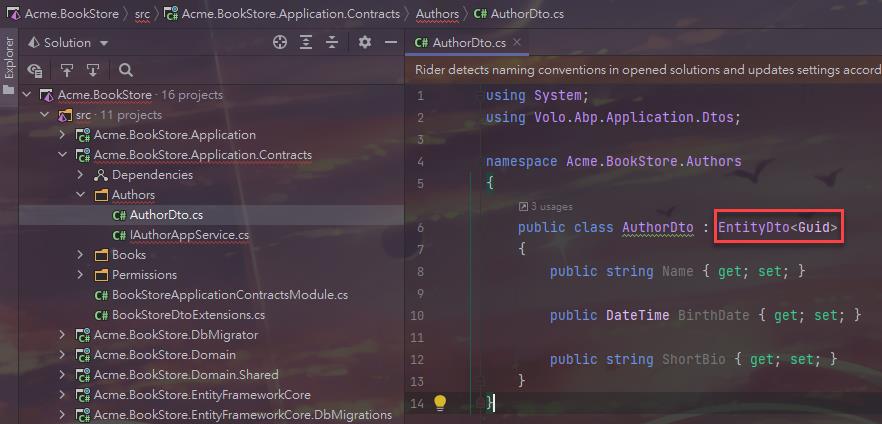

AuthorDto

using System; using Volo.Abp.Application.Dtos; namespace Acme.BookStore.Authors { public class AuthorDto : EntityDto<Guid> { public string Name { get; set; } public DateTime BirthDate { get; set; } public string ShortBio { get; set; } } }
  • EntityDto<T>僅具有Id具有給定泛型參數的屬性。您可以Id自己創建一個屬性,而不是繼承EntityDto<T>.

1627030856

GetAuthorListDto - 獲取作者列表

using Volo.Abp.Application.Dtos; namespace Acme.BookStore.Authors { public class GetAuthorListDto : PagedAndSortedResultRequestDto { public string Filter { get; set; } } }
  • Filter用於搜索作者。可以null (或空字符串)獲取所有作者。

  • PagedAndSortedResultRequestDto具有標準的分頁和排序屬性: int MaxResultCount, int SkipCountstring Sorting

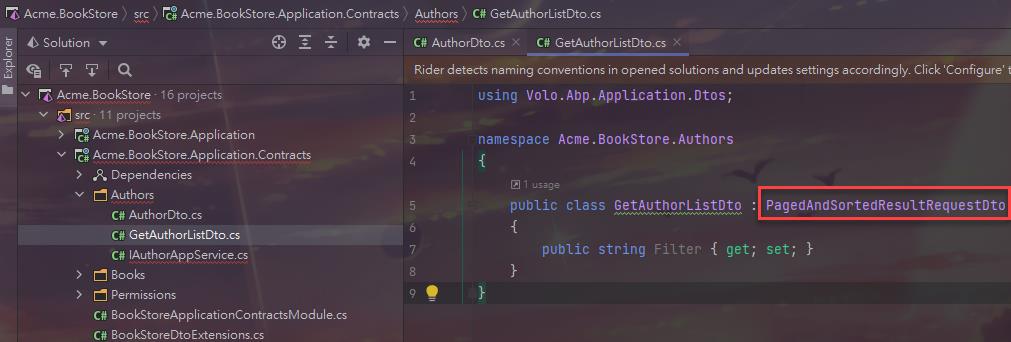

1627030919

CreateAuthorDto - 創建作者

using System; using System.ComponentModel.DataAnnotations; namespace Acme.BookStore.Authors { public class CreateAuthorDto { [Required] [StringLength(AuthorConsts.MaxNameLength)] public string Name { get; set; } [Required] public DateTime BirthDate { get; set; } public string ShortBio { get; set; } } }

數據註釋屬性可用於驗證 DTO。有關詳細信息,請參閱驗證文件

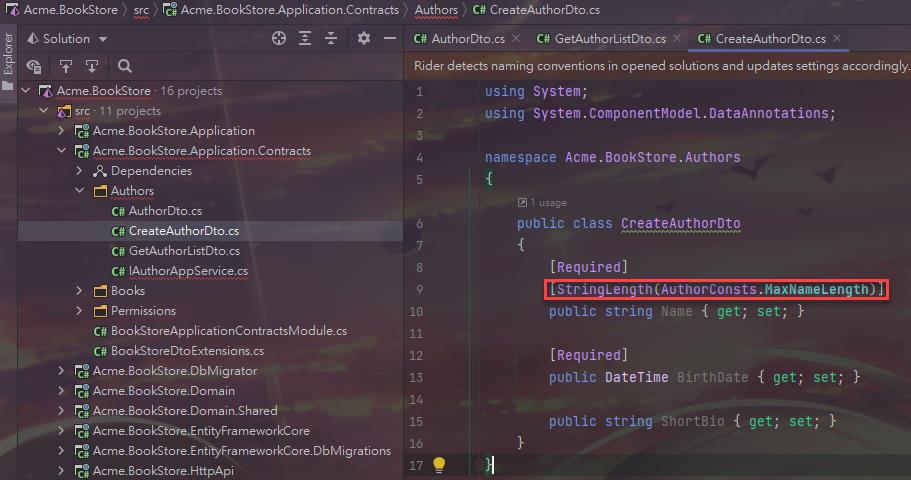

1627030989

UpdateAuthorDto - 更新作者

using System; using System.ComponentModel.DataAnnotations; namespace Acme.BookStore.Authors { public class UpdateAuthorDto { [Required] [StringLength(AuthorConsts.MaxNameLength)] public string Name { get; set; } [Required] public DateTime BirthDate { get; set; } public string ShortBio { get; set; } } }

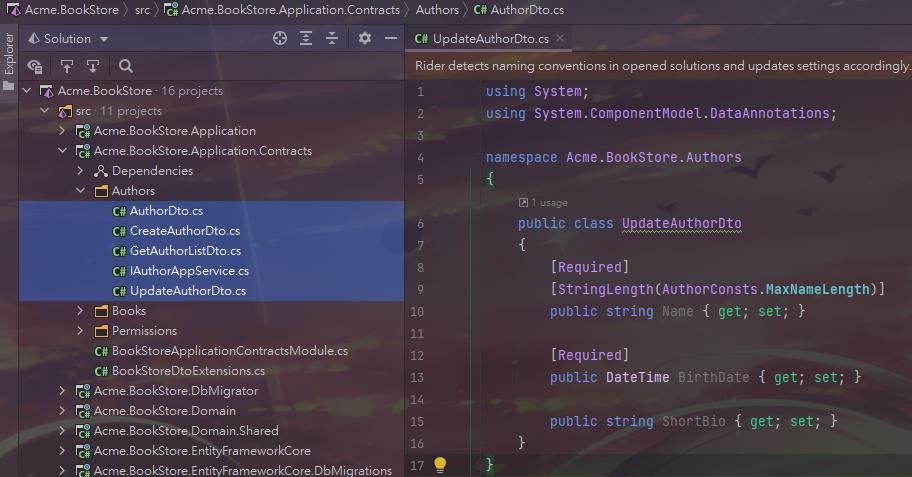

1627031168

作者應用服務

是時候實現IAuthorAppService接口了。創建一個新的類別,在 Acme.BookStore.Application 項目的Authors命名空間(文件夾)中命名 AuthorAppService

using System; using System.Collections.Generic; using System.Linq; using System.Threading.Tasks; using Acme.BookStore.Permissions; using Microsoft.AspNetCore.Authorization; using Volo.Abp.Application.Dtos; using Volo.Abp.Domain.Repositories; namespace Acme.BookStore.Authors { [Authorize(BookStorePermissions.Authors.Default)] public class AuthorAppService : BookStoreAppService, IAuthorAppService { private readonly IAuthorRepository _authorRepository; private readonly AuthorManager _authorManager; public AuthorAppService( IAuthorRepository authorRepository, AuthorManager authorManager) { _authorRepository = authorRepository; _authorManager = authorManager; } //...SERVICE METHODS WILL COME HERE... } }
  • [Authorize(BookStorePermissions.Authors.Default)]是一種檢查權限(策略)以授權當前用戶的聲明性方式。詳見授權文件BookStorePermissions類將在下面更新,現在不要擔心編譯錯誤。

  • 派生自BookStoreAppService ,它是啟動模板附帶的一個簡單基類。它派生自標準ApplicationService類。

  • 實現了IAuthorAppService上面定義的。

  • 注入IAuthorRepositoryAuthorManager以在服務方法中使用。

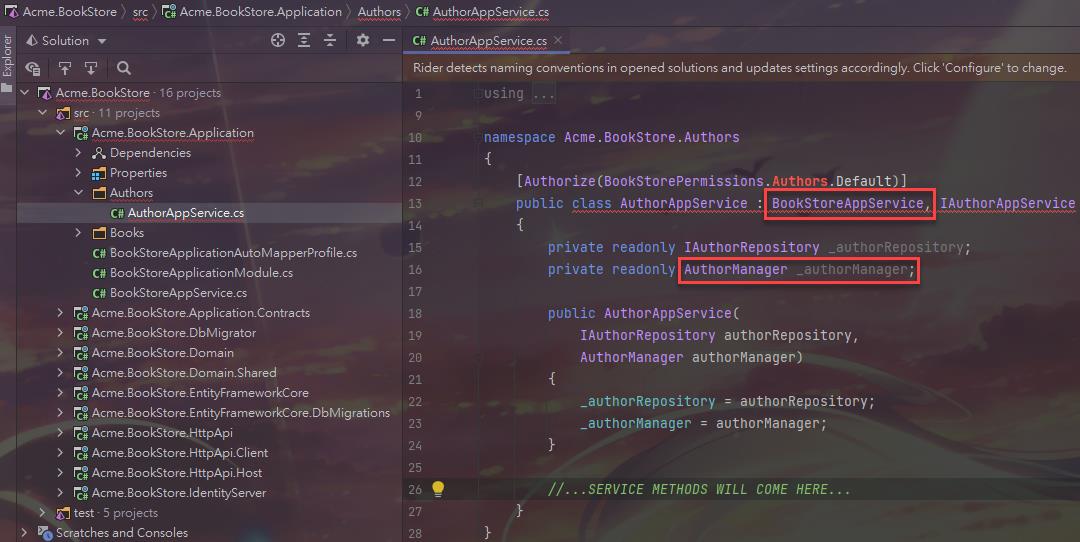

1627031311

現在,我們將一一介紹服務方法。將解釋的方法複製到AuthorAppService類中。

GetAsync

// 這邊主要展示如何利用 ABP 進行 AutoMapper 的自動映射

public async Task<AuthorDto> GetAsync(Guid id) { var author = await _authorRepository.GetAsync(id); return ObjectMapper.Map<Author, AuthorDto>(author); }

這個方法簡單地通過Author實體獲取實體Id ,轉換為AuthorDto使用對像到對象映射器 。這需要配置AutoMapper,後面會解釋。

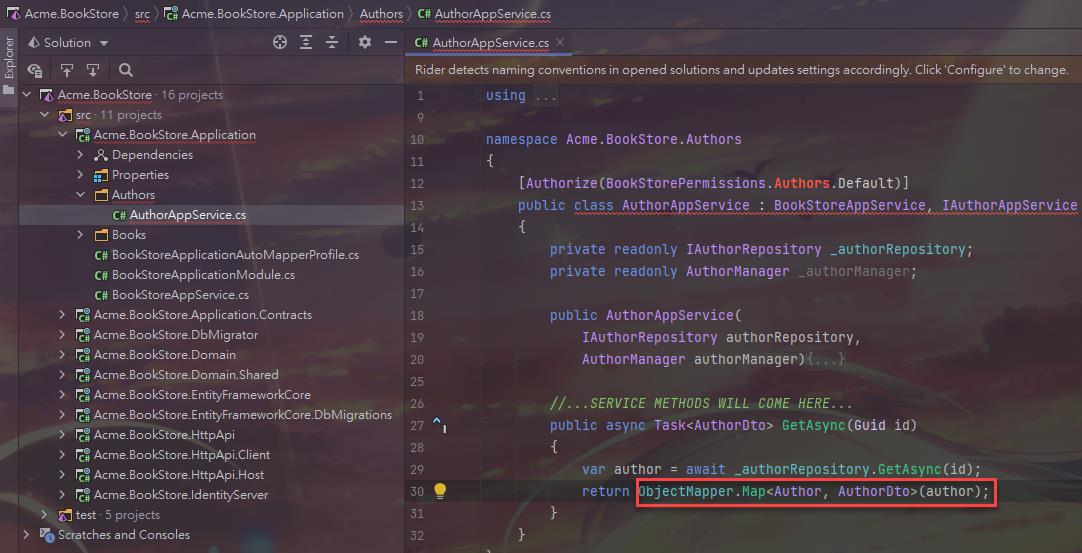

1627031430

GetListAsync

// 這主要展示取得集合時的分頁,排序,篩選,可以如何利用 ABP 進行實作

public async Task<PagedResultDto<AuthorDto>> GetListAsync(GetAuthorListDto input) { if (input.Sorting.IsNullOrWhiteSpace()) { input.Sorting = nameof(Author.Name); } var authors = await _authorRepository.GetListAsync( input.SkipCount, input.MaxResultCount, input.Sorting, input.Filter ); var totalCount = input.Filter == null ? await _authorRepository.CountAsync() : await _authorRepository.CountAsync( author => author.Name.Contains(input.Filter)); return new PagedResultDto<AuthorDto>( totalCount, ObjectMapper.Map<List<Author>, List<AuthorDto>>(authors) ); }
  • 默認排序是“按作者姓名”,它在方法的開頭完成,以防它不是由客戶端發送的。

  • 用於IAuthorRepository.GetListAsync從數據庫中獲取分頁、排序​​和過濾的作者列表。我們已經在本教程的前一部分中實現了它。同樣,實際上不需要創建這樣的方法,因為我們可以直接查詢存儲庫,但想演示如何創建自定義存儲庫方法。

  • 直接從AuthorRepository獲取作者計數的同時查詢。如果發送了過濾器,那麼我們將在獲取計數時使用它來過濾實體。

  • 最後,通過將Author列表映射到 AuthorDto 列表來返回分頁結果。

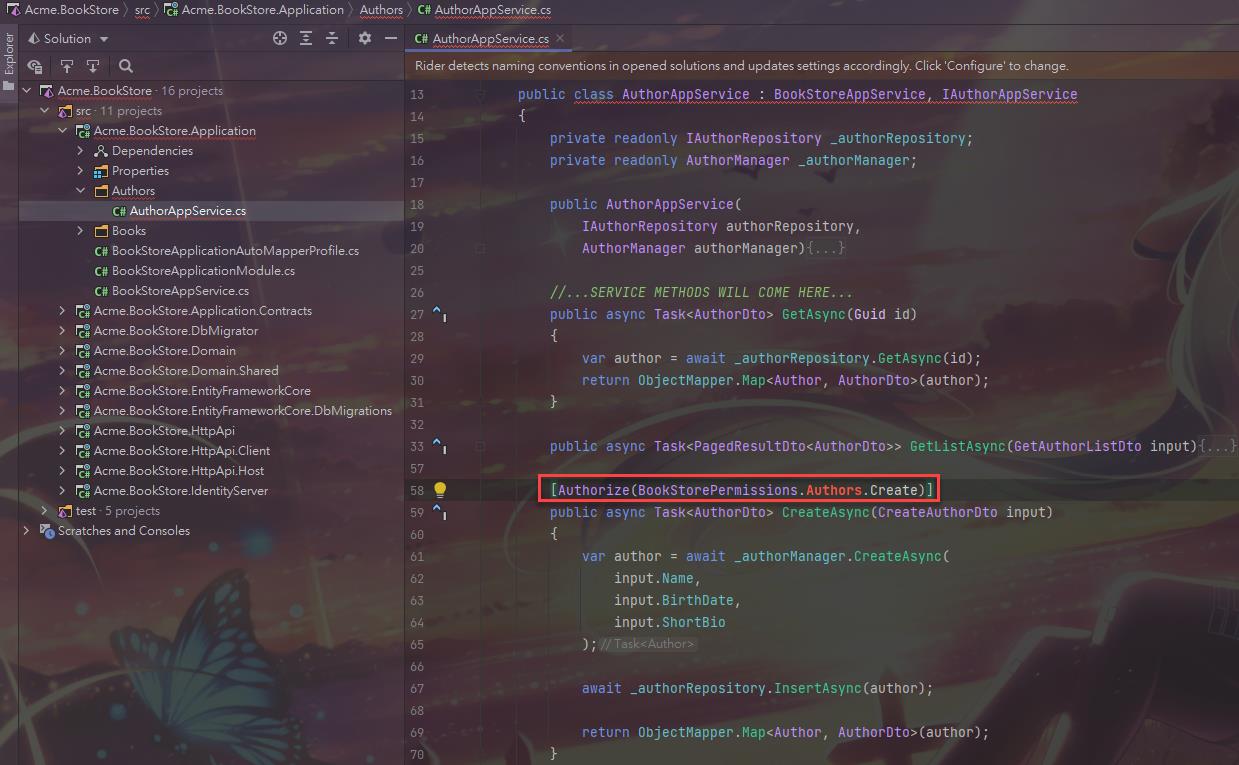

CreateAsync

// 這邊主要展示如何使用屬性的方式來設定權限

[Authorize(BookStorePermissions.Authors.Create)] public async Task<AuthorDto> CreateAsync(CreateAuthorDto input) { var author = await _authorManager.CreateAsync( input.Name, input.BirthDate, input.ShortBio ); await _authorRepository.InsertAsync(author); return ObjectMapper.Map<Author, AuthorDto>(author); }
  • CreateAsync需要BookStorePermissions.Authors.Create權限(除了BookStorePermissions.Authors.DefaultAuthorAppService類聲明的)。

  • 使用AuthorManager (域服務)創建新作者。

  • 用於IAuthorRepository.InsertAsync將新作者插入到數據庫中。

  • 使用ObjectMapper返回一個AuthorDto代表新創建的作者。

1627031565

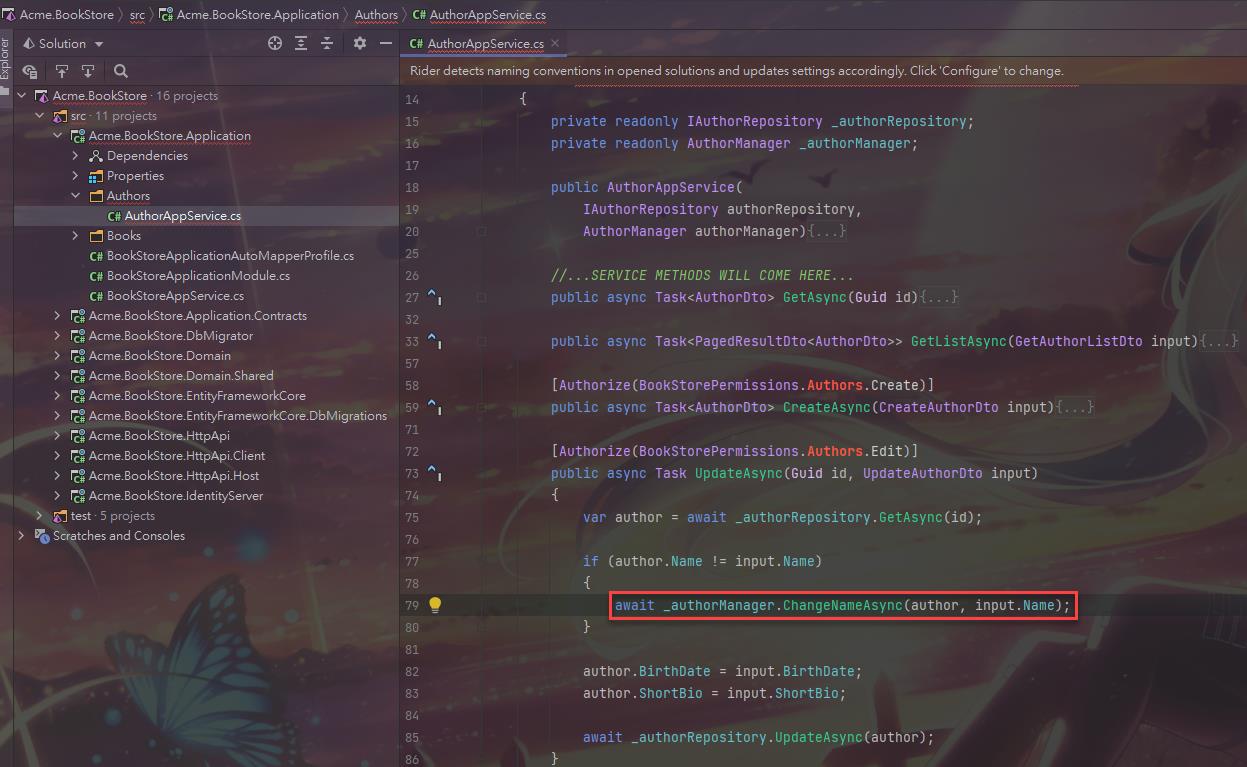

UpdateAsync

// 這邊主要展示如何在更新時透過領域服務來套用業務邏輯 (DDD)

[Authorize(BookStorePermissions.Authors.Edit)] public async Task UpdateAsync(Guid id, UpdateAuthorDto input) { var author = await _authorRepository.GetAsync(id); if (author.Name != input.Name) { await _authorManager.ChangeNameAsync(author, input.Name); } author.BirthDate = input.BirthDate; author.ShortBio = input.ShortBio; await _authorRepository.UpdateAsync(author); }
  • UpdateAsync需要額外的BookStorePermissions.Authors.Edit權限。

  • 用於IAuthorRepository.GetAsync從數據庫中獲取作者實體。如果沒有給定 id 的作者,則GetAsync拋出異常EntityNotFoundException ,這會導致404Web 應用程序中的HTTP 狀態代碼。始終使實體進行更新操作是一種很好的做法。

  • AuthorManager.ChangeNameAsync如果客戶端要求更改作者姓名,則使用(域服務方法)更改作者姓名。

  • 直接更新BirthDate並且ShortBio由於沒有任何業務規則來更改這些屬性,因此它們接受任何值。

  • 最後,調用IAuthorRepository.UpdateAsync方法更新數據庫上的實體。

1627032142

DeleteAsync

[Authorize(BookStorePermissions.Authors.Delete)] public async Task DeleteAsync(Guid id) { await _authorRepository.DeleteAsync(id); }
  • DeleteAsync需要額外的BookStorePermissions.Authors.Delete權限。

  • 它只是使用DeleteAsync存儲庫的方法。

權限定義

您無法編譯代碼,因為它需要在BookStorePermissions類中聲明一些常量。

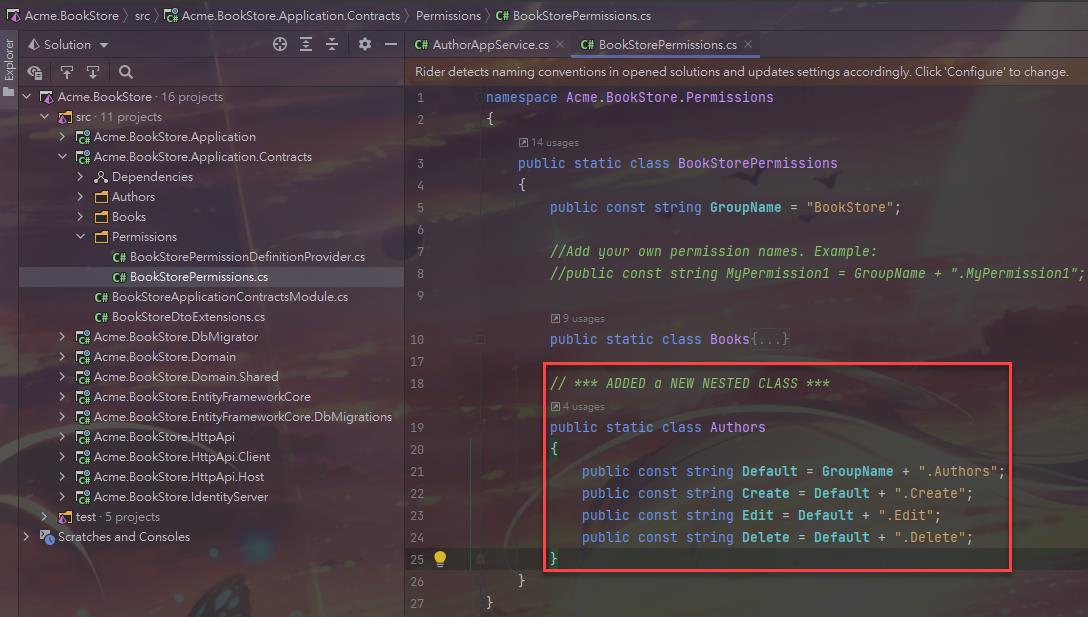

打開 Acme.BookStore.Application.Contracts 專案裡面的類 BookStorePermissions (在Permissions文件夾中),修改內容如下圖:

namespace Acme.BookStore.Permissions { public static class BookStorePermissions { public const string GroupName = "BookStore"; public static class Books { public const string Default = GroupName + ".Books"; public const string Create = Default + ".Create"; public const string Edit = Default + ".Edit"; public const string Delete = Default + ".Delete"; } // *** ADDED a NEW NESTED CLASS *** public static class Authors { public const string Default = GroupName + ".Authors"; public const string Create = Default + ".Create"; public const string Edit = Default + ".Edit"; public const string Delete = Default + ".Delete"; } } }
1627032305

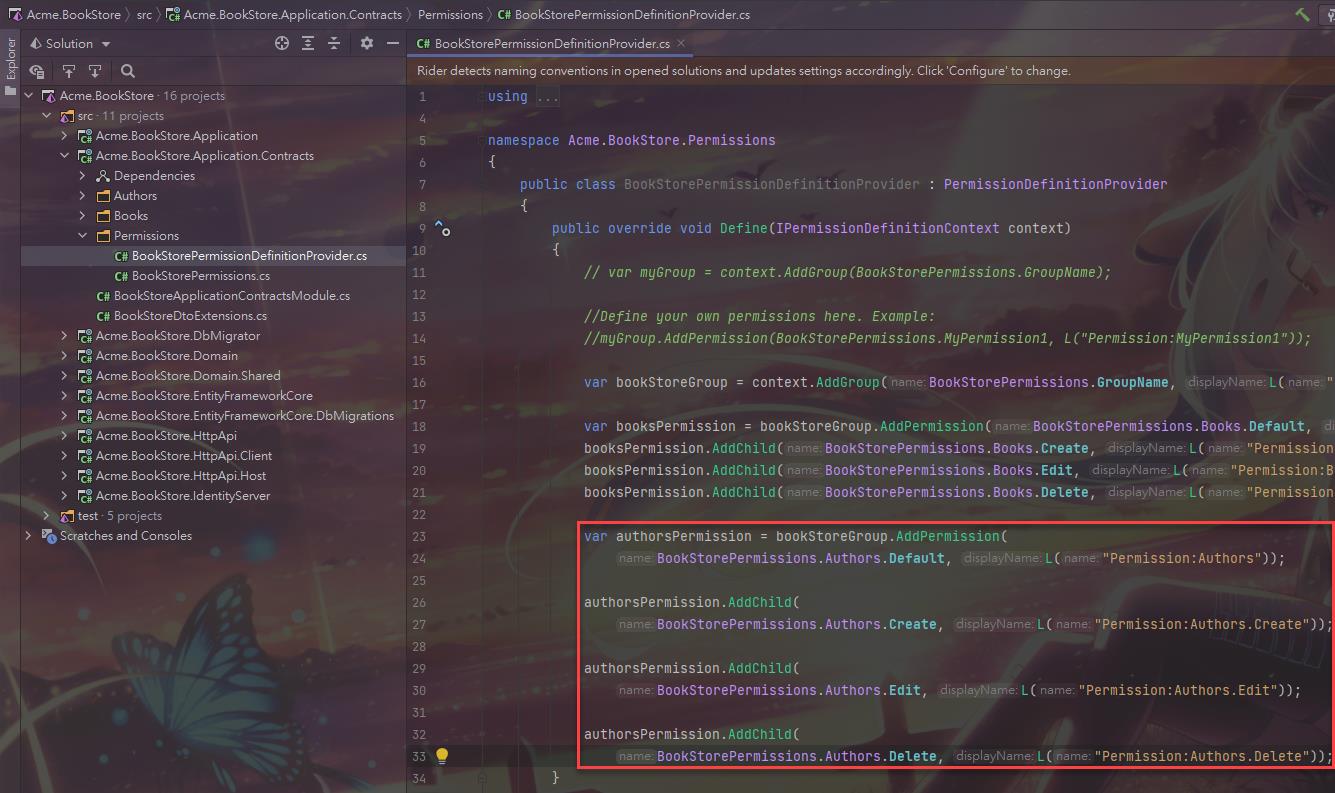

然後BookStorePermissionDefinitionProvider在同一個項目中打開 並在Define方法的末尾添加以下幾行:

var authorsPermission = bookStoreGroup.AddPermission( BookStorePermissions.Authors.Default, L("Permission:Authors")); authorsPermission.AddChild( BookStorePermissions.Authors.Create, L("Permission:Authors.Create")); authorsPermission.AddChild( BookStorePermissions.Authors.Edit, L("Permission:Authors.Edit")); authorsPermission.AddChild( BookStorePermissions.Authors.Delete, L("Permission:Authors.Delete"));
1627032454

最後,將以下條目添加到 Acme.BookStore.Domain.Shared項目Localization/BookStore/en.json內部,以本地化權限名稱:

"Permission:Authors": "Author Management", "Permission:Authors.Create": "Creating new authors", "Permission:Authors.Edit": "Editing the authors", "Permission:Authors.Delete": "Deleting the authors"

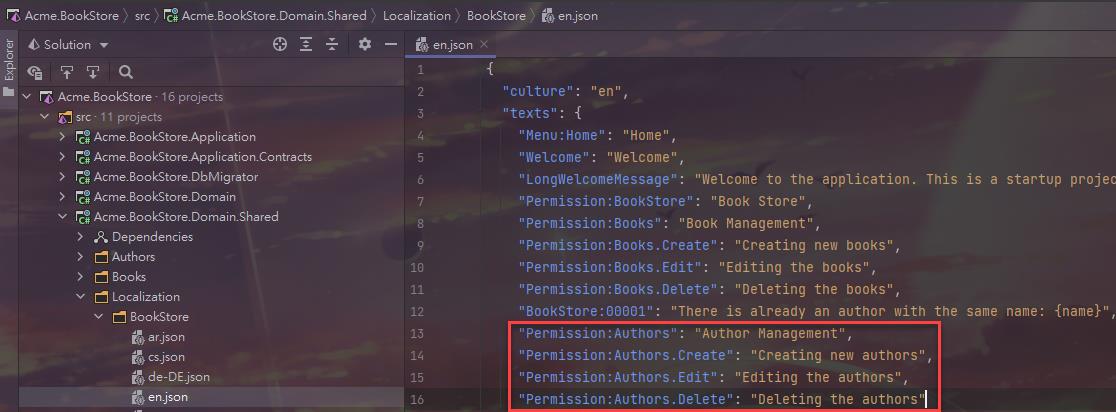

1627032509

對像到對象映射

AuthorAppService正在使用ObjectMapperAuthor對象轉換為AuthorDto對象。所以,我們需要在 AutoMapper 配置中定義這個映射。

打開 Acme.BookStore.Application 項目中的BookStoreApplicationAutoMapperProfile類並將以下行添加到構造函數中:

CreateMap<Author, AuthorDto>();
1627032622

數據播種機 (Seed Data Contributor)

正如之前對書籍所做的那樣,最好在數據庫中包含一些初始作者實體。這在第一次運行應用程序時會很好,但對於自動化測試也非常有用。

BookStoreDataSeederContributorAcme.BookStore.Domain項目中,打開並使用以下代碼更改文件內容:

using System; using System.Threading.Tasks; using Acme.BookStore.Authors; using Acme.BookStore.Books; using Volo.Abp.Data; using Volo.Abp.DependencyInjection; using Volo.Abp.Domain.Repositories; namespace Acme.BookStore { public class BookStoreDataSeederContributor : IDataSeedContributor, ITransientDependency { private readonly IRepository<Book, Guid> _bookRepository; private readonly IAuthorRepository _authorRepository; private readonly AuthorManager _authorManager; public BookStoreDataSeederContributor( IRepository<Book, Guid> bookRepository, IAuthorRepository authorRepository, AuthorManager authorManager) { _bookRepository = bookRepository; _authorRepository = authorRepository; _authorManager = authorManager; } public async Task SeedAsync(DataSeedContext context) { if (await _bookRepository.GetCountAsync() <= 0) { await _bookRepository.InsertAsync( new Book { Name = "1984", Type = BookType.Dystopia, PublishDate = new DateTime(1949, 6, 8), Price = 19.84f }, autoSave: true ); await _bookRepository.InsertAsync( new Book { Name = "The Hitchhiker's Guide to the Galaxy", Type = BookType.ScienceFiction, PublishDate = new DateTime(1995, 9, 27), Price = 42.0f }, autoSave: true ); } // ADDED SEED DATA FOR AUTHORS if (await _authorRepository.GetCountAsync() <= 0) { await _authorRepository.InsertAsync( await _authorManager.CreateAsync( "George Orwell", new DateTime(1903, 06, 25), "Orwell produced literary criticism and poetry, fiction and polemical journalism; and is best known for the allegorical novella Animal Farm (1945) and the dystopian novel Nineteen Eighty-Four (1949)." ) ); await _authorRepository.InsertAsync( await _authorManager.CreateAsync( "Douglas Adams", new DateTime(1952, 03, 11), "Douglas Adams was an English author, screenwriter, essayist, humorist, satirist and dramatist. Adams was an advocate for environmentalism and conservation, a lover of fast cars, technological innovation and the Apple Macintosh, and a self-proclaimed 'radical atheist'." ) ); } } } }

現在,您可以運行.DbMigrator控制台應用程序遷移數據庫架構種子的初始數據。

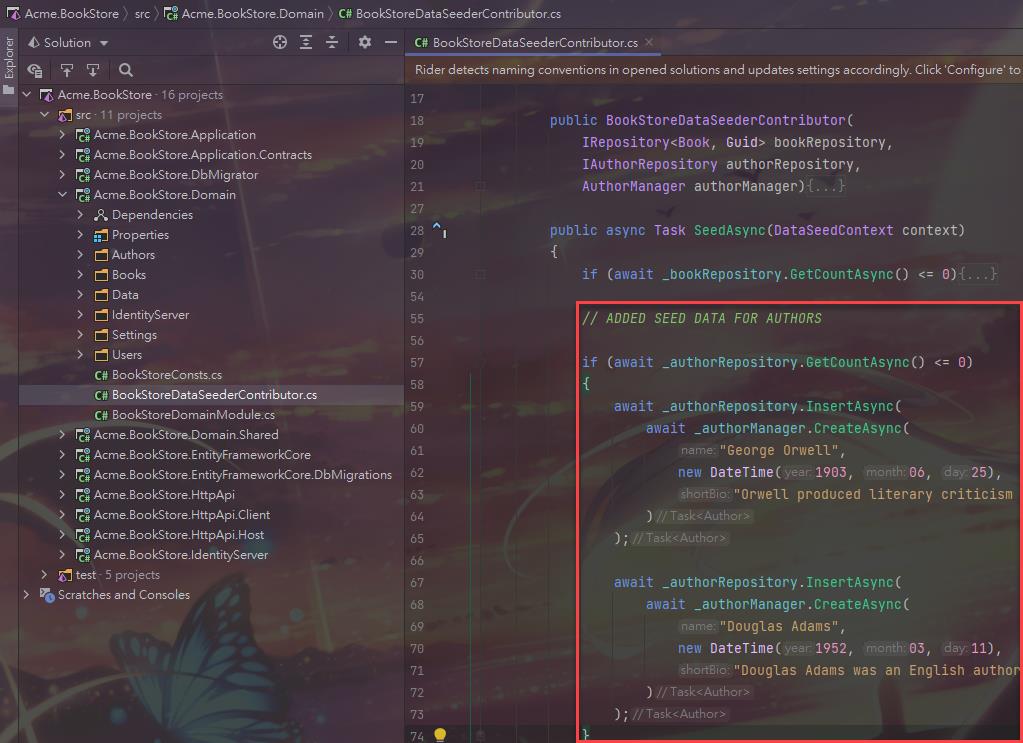

1627032845

測試作者申請服務

最後,我們可以為IAuthorAppService. 添加一個新類, AuthorAppService_TestsAcme.BookStore.Application.Tests 項目的Authors命名空間(文件夾)中命名:

using System; using System.Threading.Tasks; using Shouldly; using Xunit; namespace Acme.BookStore.Authors { public class AuthorAppService_Tests : BookStoreApplicationTestBase { private readonly IAuthorAppService _authorAppService; public AuthorAppService_Tests() { _authorAppService = GetRequiredService<IAuthorAppService>(); } [Fact] public async Task Should_Get_All_Authors_Without_Any_Filter() { var result = await _authorAppService.GetListAsync(new GetAuthorListDto()); result.TotalCount.ShouldBeGreaterThanOrEqualTo(2); result.Items.ShouldContain(author => author.Name == "George Orwell"); result.Items.ShouldContain(author => author.Name == "Douglas Adams"); } [Fact] public async Task Should_Get_Filtered_Authors() { var result = await _authorAppService.GetListAsync( new GetAuthorListDto {Filter = "George"}); result.TotalCount.ShouldBeGreaterThanOrEqualTo(1); result.Items.ShouldContain(author => author.Name == "George Orwell"); result.Items.ShouldNotContain(author => author.Name == "Douglas Adams"); } [Fact] public async Task Should_Create_A_New_Author() { var authorDto = await _authorAppService.CreateAsync( new CreateAuthorDto { Name = "Edward Bellamy", BirthDate = new DateTime(1850, 05, 22), ShortBio = "Edward Bellamy was an American author..." } ); authorDto.Id.ShouldNotBe(Guid.Empty); authorDto.Name.ShouldBe("Edward Bellamy"); } [Fact] public async Task Should_Not_Allow_To_Create_Duplicate_Author() { await Assert.ThrowsAsync<AuthorAlreadyExistsException>(async () => { await _authorAppService.CreateAsync( new CreateAuthorDto { Name = "Douglas Adams", BirthDate = DateTime.Now, ShortBio = "..." } ); }); } //TODO: Test other methods... } }

為應用服務方法創建了一些測試,應該很容易理解。

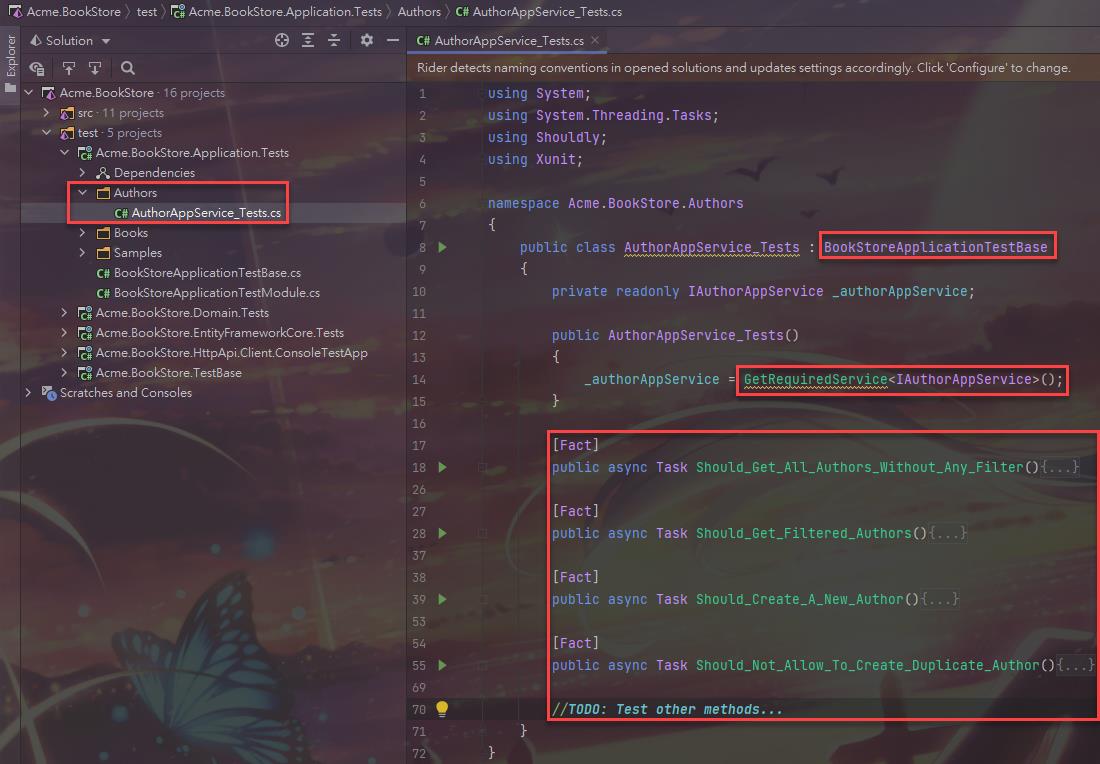

1627033014

下一部分

請參閱本教程的下一部分
